ArcGIS教程：创建包含插图的地图册（二）

为导出准备地图文档

    创建范围指示器并记录脚本所需信息之后，设置地图文档，避免每一页上都显示范围指示器或插图。

    步骤:

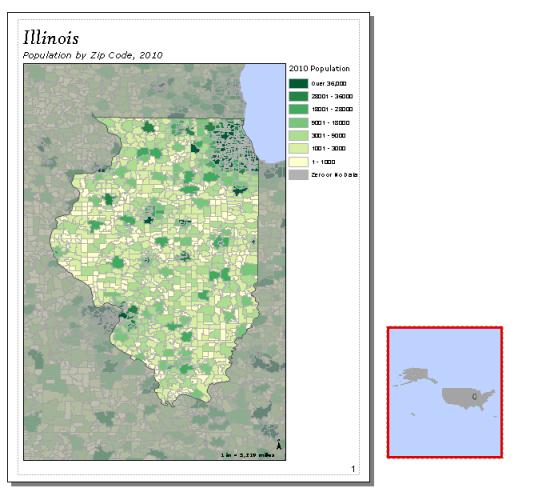

• 将包含插图的数据框移出页面的可打印范围。
• 将插图的范围更改为比主数据框的范围大很多，使得范围指示器不会出现在不想其出现的页面上。

• 保存地图文档。

编写导出脚本

    下面显示一个示例脚本，该脚本将导出在第 1 页和第 3 页上有插图的地图册。

    下面的脚本将导出在第 1 页和第 3 页上有插图的地图册。

import arcpy, os

# Create an output directory variable

#

outDir = r"C:\Project\MapBook\final_output"

# Create a new, empty pdf document in the specified output directory

# This will be your final product

finalpdf_filename = outDir + r"\FinalMapBook.pdf"

if os.path.exists(finalpdf_filename): # Check to see if file already exists, delete if it does

  os.remove(finalpdf_filename)

finalPdf = arcpy.mapping.PDFDocumentCreate(finalpdf_filename)

# Create a Data Driven Pages object from the mxd you wish to export

#

mxdPath = r"C:\Project\MapBook\zipCodePopulation.mxd"

tempMap = arcpy.mapping.MapDocument(mxdPath)

tempDDP = tempMap.dataDrivenPages

# Create objects for the layout elements that will be moving, e.g., inset data frame, scale text

dataFrame = arcpy.mapping.ListDataFrames(tempMap, "Inset Map")[0]

# Instead of exporting all pages at once, you will need to use a loop to export one at a time

# This allows you to check each index and execute code to add inset maps to the correct pages

#

for pgIndex in range(1, tempDDP.pageCount + 1, 1):

  # Create a name for the pdf file you will create for each page

  temp_filename = r"C:\Project\MapBook\temp_pdfs\MB_" + \

                            str(pgIndex) + ".pdf"

  if os.path.exists(temp_filename):

    os.remove(temp_filename)

  # The following if statements check the current page index against given values

  # If the current page index matches, it will execute code to set up that page

  # If not, the page remains as is

  # Note: If you created a text file containing this information, this is where

  # you would paste in that code

  # Code for setting up the inset map on the first page #

  if (pgIndex == 1):

    # Set position of inset map to place it on the page layout

    dataFrame.elementPositionX = 0.5

    dataFrame.elementPositionY = 0.6

    # Set the desired size of the inset map for this page

    dataFrame.elementHeight = 2.0

    dataFrame.elementWidth = 2.0

    # Set the desired extent for the inset map

    insetExtent_1 = arcpy.Extent(-88.306778229417176, 41.590293951894907, -87.609922645465474, 42.300975912784295)

    dataFrame.extent = insetExtent_1

  # Code for setting up the inset map on the third page #

  if (pgIndex == 3):

    # Set up inset map

    dataFrame.elementPositionX = 3.25

    dataFrame.elementPositionY = 7

    dataFrame.elementHeight = 2.45

    dataFrame.elementWidth = 3.0

    insetExtent_3 = arcpy.Extent(-83.889191535, 41.870516098, -82.875460656, 42.72572048)

    dataFrame.extent = insetExtent_3

  # Code to export current page and add it to mapbook

  tempDDP.exportToPDF(temp_filename, "RANGE", pgIndex)

  finalPdf.appendPages(temp_filename)

  # Clean up your page layout by moving the data frame and resetting its extent after exporting the page

  # This will reset the page to the basic layout before exporting the next page

  #

  dataFrame.elementPositionX = 10 # Move inset data frame off the page

  dataFrame.scale = 350000000 # Change scale so extent indicator no longer visible in main data frame

  arcpy.RefreshActiveView()

# Clean up

#

del tempMap

# Update the properties of the final pdf

#

finalPdf.updateDocProperties(pdf_open_view="USE_THUMBS",

                             pdf_layout="SINGLE_PAGE")

# Save your result

#

finalPdf.saveAndClose()
